MI-SGC M12 NEW MI-SGC M12 NEW Thread - M: M12 Weight: 0.36 kg Material composition: Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-6 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel Features & Applications Features For steel beams with flange thickness from 3 to 36 mm and angles of up to 15° Corrosion protection on the steel beam is not damaged by the beam clamp Equipped with a set of vibration-resistant washers Applications MI beam clamp for direct connection of MI girders to steel beams
Technical Data
-
Thread - M
-
M12
-
Weight
-
0.36 kg
-
Material composition
-
Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-6 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel
-
Surface finish
-
HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461
-
Tightening torque
-
84 Nm
-
Wrench size
-
19 mm
-

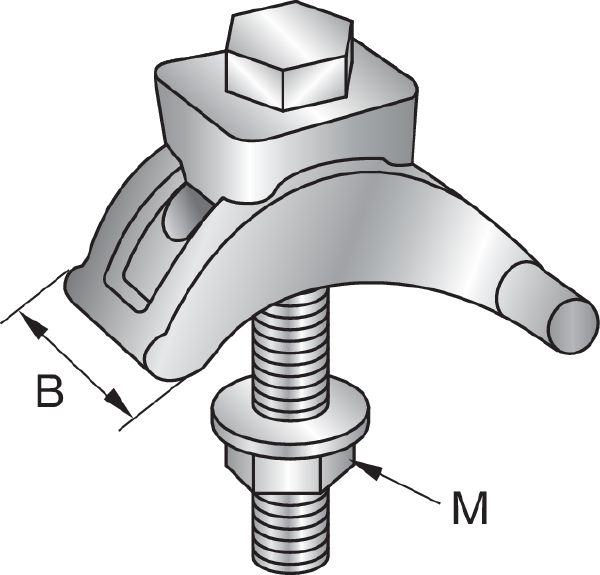

Width - B
-
30 mm
-
Additional product information
-
Beam clamps always to be used in pairs
