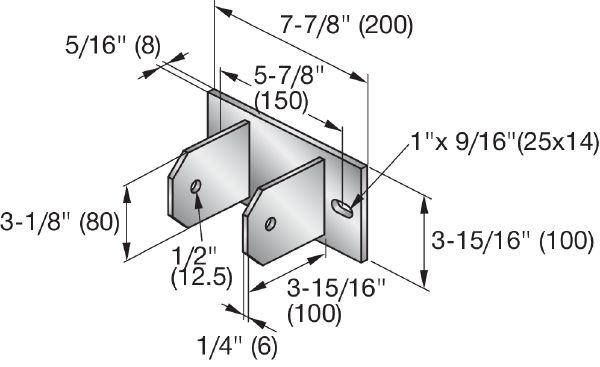

MIC-CU-MA

已选总价:￥0.00
已选数量:0件

所有费用均已包含增值税，不含运费。运费详情请参阅运费指导书。

产品详情与编号

序号	产品编号	名称	Packaging unit	Weight	MI girder type	售价	订购数量
	全部	全部	全部	全部	全部
1.0	304828	Connector MIC-CU-MA concrete	Packaging unit 4 pc	Weight 2.21 kg	MI girder type 90. 120	￥342.50

注：本公司对上述参数保有最终解释权，如若变动，恕不通知。

MIC-CU-MA NEW MIC-CU-MA NEW MI girder type: 90, 120 Weight: 2.21 kg Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461 Features & Applications Features Oblong holes simplify exact positioning Applications Connecting girders directly to concrete at angles between 0° and 180° Fastening to concrete/walls

Technical Data

MI girder type: 90, 120
Weight: 2.21 kg
Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Tightening torque: 84 Nm
Wrench size: 19 mm
