MP-MIM16

已选总价:￥0.00
已选数量:0件

所有费用均已包含增值税，不含运费。运费详情请参阅运费指导书。

产品详情与编号

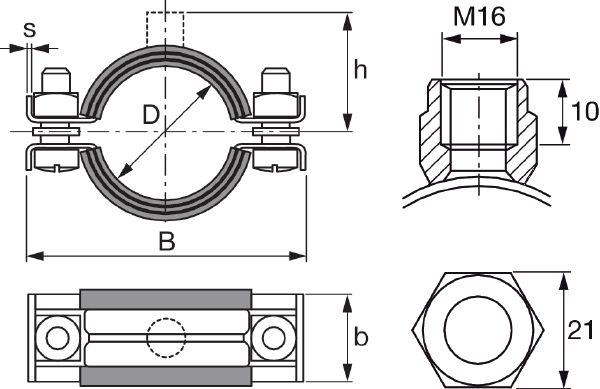

序号	产品编号	名称	Packaging unit	Thread - M	Clamping range - D	售价
	全部	全部	全部	全部	全部
1.0	20858	Heavy-d. pipe ring MP-MI 2" C	Packaging unit 10 pc	Thread - M M16	Clamping range - D 57 - 64 mm	￥66.20
2.0	20890	Heavy-d. pipe ring MP-MI 177.8 C	Packaging unit 10 pc	Thread - M M16	Clamping range - D 175 - 180 mm	￥202.50
3.0	229087	Heavy-d. pipe ring MP-MI 159 C	Packaging unit 10 pc	Thread - M M16	Clamping range - D 156 - 162 mm	￥117.50
4.0	20872	Heavy-d. pipe ring MP-MI 4" C	Packaging unit 5 pc	Thread - M M16	Clamping range - D 108 - 114 mm	￥125.00
5.0	20892	Heavy-d. pipe ring MP-MI 193.7 C	Packaging unit 10 pc	Thread - M M16	Clamping range - D 190 - 200 mm	￥215.00
6.0	20894	Heavy-d. pipe ring MP-MI 212 C	Packaging unit 10 pc	Thread - M M16	Clamping range - D 210 - 219 mm	￥225.00
7.0	20863	Heavy-d. pipe ring MP-MI 2 1/2" C	Packaging unit 10 pc	Thread - M M16	Clamping range - D 70 - 77 mm	￥79.00
8.0	20880	Heavy-d. pipe ring MP-MI 133 C	Packaging unit 10 pc	Thread - M M16	Clamping range - D 132 - 137 mm	￥150.00
9.0	20867	Heavy-d. pipe ring MP-MI 3" C	Packaging unit 10 pc	Thread - M M16	Clamping range - D 82 - 90 mm	￥105.00
10.0	20896	Heavy-d. pipe ring MP-MI 219.1 C	Packaging unit 10 pc	Thread - M M16	Clamping range - D 217 - 224 mm	￥230.00
11.0	20898	Heavy-d. pipe ring MP-MI 244.5 C	Packaging unit 5 pc	Thread - M M16	Clamping range - D 242 - 250 mm	￥247.50
12.0	20888	Heavy-d. pipe ring MP-MI 6" C	Packaging unit 10 pc	Thread - M M16	Clamping range - D 162 - 168 mm	￥177.50

注：本公司对上述参数保有最终解释权，如若变动，恕不通知。

MP-MI M16 NEW MP-MI M16 NEW Thread - M: M16 Material composition: S235JRG - DIN EN 10025 Temperature resistance: -40-110 °C Features & Applications Features M8 clamping screws, secured against loss, with combination cross-recess head Welded-on, heavy-duty nuts for clamping screw sizes 68 / 72 and above Threaded boss with M10/M12 stepped thread up to 6" size, M16 above 6" Pre-assembled, non-slip rubber profile Clamping band with swaged bead for increased rigidity Applications Heavy-duty installation, for pipes up to 273 mm in diameter Installation of industrial pipework Air conditioning / refrigeration / plumbing Process and control lines For approval or certificate information, please see individual items.

Technical Data

Thread - M: M16
Material composition: S235JRG - DIN EN 10025
Temperature resistance: -40 - 110 °C
Surface finish: Galvanized
Insulation material: EPDM rubber
Hardness insulation material: 50° ±5° Shore A
Clamping screw: M8
Tightening torque: 3 Nm
Noise reduction: 19 dB (A)
Approvals: Fire class B2

Documents

Approval document
- PDF Building material class B2, German, [ 14.6 kB ]
